在子畫素中檢測角點位置

目錄

• 目標
• 理論
• 程式碼
• 解釋
• 結果

上一篇教程： 建立自己的角點檢測器
下一篇教程： 特徵檢測

原始作者	Ana Huamán
相容性	OpenCV >= 3.0

目標

在本教程中，您將學習如何

• 使用OpenCV函式 cv::cornerSubPix 來查詢更精確的角點位置（比整數畫素更精確）。

理論

程式碼

C++

本教程的程式碼如下所示。你也可以從 此處 下載


#include "opencv2/highgui.hpp"
#include "opencv2/imgproc.hpp"
#include <iostream>

using namespace cv;
using namespace std;

Mat src, src_gray;

int maxCorners = 10;
int maxTrackbar = 25;

RNG rng(12345);
const char* source_window = "Image";

void goodFeaturesToTrack_Demo( int, void* );

int main( int argc, char** argv )
{
    CommandLineParser parser( argc, argv, "{@input | pic3.png | input image}" );
src = imread( samples::findFile( parser.get<String>( "@input" ) ) );
    if( src.empty() )
    {
cout << "Could not open or find the image!\n" << endl;
cout << "Usage: " << argv[0] << " <Input image>" << endl;
        return -1;
    }
cvtColor( src, src_gray, COLOR_BGR2GRAY );

namedWindow( source_window );

createTrackbar( "Max corners:", source_window, &maxCorners, maxTrackbar, goodFeaturesToTrack_Demo );

imshow( source_window, src );

goodFeaturesToTrack_Demo( 0, 0 );

cv::Mat::empty
    return 0;
}

void goodFeaturesToTrack_Demo( int, void* )
{
maxCorners = MAX(maxCorners, 1);
vector<Point2f> corners;
    double qualityLevel = 0.01;
    double minDistance = 10;
    int blockSize = 3, gradientSize = 3;
    bool useHarrisDetector = false;
    double k = 0.04;

    Mat copy = src.clone();

goodFeaturesToTrack( src_gray,
corners,
maxCorners,
qualityLevel,
minDistance,
                         Mat(),
blockSize,
gradientSize,
useHarrisDetector,
k );


cout << "** Number of corners detected: " << corners.size() << endl;
    int radius = 4;
    for( size_t i = 0; i < corners.size(); i++ )
    {
circle( copy, corners[i], radius, Scalar(rng.uniform(0,255), rng.uniform(0, 256), rng.uniform(0, 256)), FILLED );
    }

namedWindow( source_window );
imshow( source_window, copy );

    Size winSize = Size( 5, 5 );
    Size zeroZone = Size( -1, -1 );
    TermCriteria criteria = TermCriteria( TermCriteria::EPS + TermCriteria::COUNT, 40, 0.001 );

cornerSubPix( src_gray, corners, winSize, zeroZone, criteria );

    for( size_t i = 0; i < corners.size(); i++ )
    {
cout << " -- Refined Corner [" << i << "] (" << corners[i].x << "," << corners[i].y << ")" << endl;
    }
}

Java

本教程的程式碼如下所示。你也可以從 此處 下載

import java.awt.BorderLayout;
import java.awt.Container;
import java.awt.Image;
import java.util.Random;

import javax.swing.BoxLayout;
import javax.swing.ImageIcon;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.JSlider;
import javax.swing.event.ChangeEvent;
import javax.swing.event.ChangeListener;

import org.opencv.core.Core;
import org.opencv.core.CvType;
import org.opencv.core.Mat;
import org.opencv.core.MatOfPoint;
import org.opencv.core.Point;
import org.opencv.core.Scalar;
import org.opencv.core.Size;
import org.opencv.core.TermCriteria;
import org.opencv.highgui.HighGui;
import org.opencv.imgcodecs.Imgcodecs;
import org.opencv.imgproc.Imgproc;

class CornerSubPix {
    private Mat src = new Mat();
    private Mat srcGray = new Mat();
    private JFrame frame;
    private JLabel imgLabel;
    private static final int MAX_CORNERS = 25;
    private int maxCorners = 10;
    private Random rng = new Random(12345);

    public CornerSubPix(String[] args) {
String filename = args.length > 0 ? args[0] : "../data/pic3.png";
src = Imgcodecs.imread(filename);
        if (src.empty()) {
System.err.println("Cannot read image: " + filename);
System.exit(0);
        }

Imgproc.cvtColor(src, srcGray, Imgproc.COLOR_BGR2GRAY);

        // Create and set up the window.
frame = new JFrame("Shi-Tomasi corner detector demo");
frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        // Set up the content pane.
Image img = HighGui.toBufferedImage(src);
addComponentsToPane(frame.getContentPane(), img);
        // Use the content pane's default BorderLayout. No need for
        // setLayout(new BorderLayout());
        // Display the window.
frame.pack();
frame.setVisible(true);
update();
    }

    private void addComponentsToPane(Container pane, Image img) {
        if (!(pane.getLayout() instanceof BorderLayout)) {
pane.add(new JLabel("Container doesn't use BorderLayout!"));
            return;
        }

JPanel sliderPanel = new JPanel();
sliderPanel.setLayout(new BoxLayout(sliderPanel, BoxLayout.PAGE_AXIS));

sliderPanel.add(new JLabel("Max corners:"));
JSlider slider = new JSlider(0, MAX_CORNERS, maxCorners);
slider.setMajorTickSpacing(20);
slider.setMinorTickSpacing(10);
slider.setPaintTicks(true);
slider.setPaintLabels(true);
slider.addChangeListener(new ChangeListener() {
@Override
            public void stateChanged(ChangeEvent e) {
JSlider source = (JSlider) e.getSource();
maxCorners = source.getValue();
update();
            }
        });
sliderPanel.add(slider);
pane.add(sliderPanel, BorderLayout.PAGE_START);

imgLabel = new JLabel(new ImageIcon(img));
pane.add(imgLabel, BorderLayout.CENTER);
    }

    private void update() {
maxCorners = Math.max(maxCorners, 1);
MatOfPoint corners = new MatOfPoint();
        double qualityLevel = 0.01;
        double minDistance = 10;
        int blockSize = 3, gradientSize = 3;
        boolean useHarrisDetector = false;
        double k = 0.04;

Mat copy = src.clone();

Imgproc.goodFeaturesToTrack(srcGray, corners, maxCorners, qualityLevel, minDistance, new Mat(),
blockSize, gradientSize, useHarrisDetector, k);

System.out.println("** Number of corners detected: " + corners.rows());
        int[] cornersData = new int[(int) (corners.total() * corners.channels())];
corners.get(0, 0, cornersData);
        int radius = 4;
Mat matCorners = new Mat(corners.rows(), 2, CvType.CV_32F);
        float[] matCornersData = new float[(int) (matCorners.total() * matCorners.channels())];
matCorners.get(0, 0, matCornersData);
        for (int i = 0; i < corners.rows(); i++) {
Imgproc.circle(copy, new Point(cornersData[i * 2], cornersData[i * 2 + 1]), radius,
                    new Scalar(rng.nextInt(256), rng.nextInt(256), rng.nextInt(256)), Imgproc.FILLED);
matCornersData[i * 2] = cornersData[i * 2];
matCornersData[i * 2 + 1] = cornersData[i * 2 + 1];
        }
matCorners.put(0, 0, matCornersData);

imgLabel.setIcon(new ImageIcon(HighGui.toBufferedImage(copy)));
frame.repaint();

        Size winSize = new Size(5, 5);
        Size zeroZone = new Size(-1, -1);
TermCriteria criteria = new TermCriteria(TermCriteria.EPS + TermCriteria.COUNT, 40, 0.001);

Imgproc.cornerSubPix(srcGray, matCorners, winSize, zeroZone, criteria);

matCorners.get(0, 0, matCornersData);
        for (int i = 0; i < corners.rows(); i++) {
System.out.println(
                    " -- Refined Corner [" + i + "] (" + matCornersData[i * 2] + "," + matCornersData[i * 2 + 1] + ")");
        }
    }
}

public class CornerSubPixDemo {
    public static void main(String[] args) {
        // 載入本地 OpenCV 庫
System.loadLibrary(Core.NATIVE_LIBRARY_NAME);

        // Schedule a job for the event dispatch thread
        // creating and showing this application's GUI.
javax.swing.SwingUtilities.invokeLater(new Runnable() {
@Override
            public void run() {
                new CornerSubPix(args);
            }
        });
    }
}

Python

本教程的程式碼如下所示。你也可以從 此處 下載

from __future__ import print_function
import cv2 as cv
import numpy as np
import argparse
import random as rng

source_window = 'Image'
maxTrackbar = 25
rng.seed(12345)

def goodFeaturesToTrack_Demo(val)
maxCorners = max(val, 1)

    # Shi-Tomasi 演算法的引數
qualityLevel = 0.01
minDistance = 10
blockSize = 3
gradientSize = 3
useHarrisDetector = False
k = 0.04

    # 複製源影像
copy = np.copy(src)

    # 應用角點檢測
corners = cv.goodFeaturesToTrack(src_gray, maxCorners, qualityLevel, minDistance, None, \
blockSize=blockSize, gradientSize=gradientSize, useHarrisDetector=useHarrisDetector, k=k)

    # 繪製檢測到的角點
print('** Number of corners detected:', corners.shape[0])
radius = 4
    for i in range(corners.shape[0])
        cv.circle(copy, (int(corners[i,0,0]), int(corners[i,0,1])), radius, (rng.randint(0,256), rng.randint(0,256), rng.randint(0,256)), cv.FILLED)

    # 展示結果
    cv.namedWindow(source_window)
    cv.imshow(source_window, copy)

    # Set the needed parameters to find the refined corners
winSize = (5, 5)
zeroZone = (-1, -1)
criteria = (cv.TERM_CRITERIA_EPS + cv.TermCriteria_COUNT, 40, 0.001)

    # Calculate the refined corner locations
corners = cv.cornerSubPix(src_gray, corners, winSize, zeroZone, criteria)

    # Write them down
    for i in range(corners.shape[0])
print(" -- Refined Corner [", i, "] (", corners[i,0,0], ",", corners[i,0,1], ")")

# 載入源影像並將其轉換為灰度影像
parser = argparse.ArgumentParser(description='Code for Shi-Tomasi corner detector tutorial.')
parser.add_argument('--input', help='Path to input image.', default='pic3.png')
args = parser.parse_args()

src = cv.imread(cv.samples.findFile(args.input))
if src is None
print('Could not open or find the image:', args.input)
exit(0)

src_gray = cv.cvtColor(src, cv.COLOR_BGR2GRAY)

# 建立視窗和軌跡欄
cv.namedWindow(source_window)
maxCorners = 10 # initial threshold
cv.createTrackbar('Threshold: ', source_window, maxCorners, maxTrackbar, goodFeaturesToTrack_Demo)
cv.imshow(source_window, src)
goodFeaturesToTrack_Demo(maxCorners)

cv.waitKey()

解釋

結果

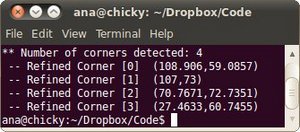

結果如下：
