為輪廓建立邊界框和圓

目錄

• 目標
• 理論
• 程式碼
• 解釋
• 結果

上一個教程： 凸包
下一個教程： 為輪廓建立旋轉邊界框和橢圓

原始作者	Ana Huamán
相容性	OpenCV >= 3.0

目標

在本教程中，您將學習如何

• 使用OpenCV函式 cv::boundingRect
• 使用OpenCV函式 cv::minEnclosingCircle

理論

程式碼

C++

本教程程式碼如下所示。您也可以從此處下載


#include "opencv2/imgcodecs.hpp"
#include "opencv2/highgui.hpp"
#include "opencv2/imgproc.hpp"
#include <iostream>

using namespace cv;
using namespace std;

Mat src_gray;
int thresh = 100;
RNG rng(12345);

void thresh_callback(int, void* );

int main( int argc, char** argv )
{
    CommandLineParser parser( argc, argv, "{@input | stuff.jpg | input image}" );
    Mat src = imread( samples::findFile( parser.get<String>( "@input" ) ) );
    if( src.empty() )
    {
cout << "Could not open or find the image!\n" << endl;
cout << "usage: " << argv[0] << " <Input image>" << endl;
        return -1;
    }

cvtColor( src, src_gray, COLOR_BGR2GRAY );
blur( src_gray, src_gray, Size(3,3) );

    const char* source_window = "Source";
namedWindow( source_window );
imshow( source_window, src );

    const int max_thresh = 255;
createTrackbar( "Canny thresh:", source_window, &thresh, max_thresh, thresh_callback );
thresh_callback( 0, 0 );

cv::Mat::empty
    return 0;
}

void thresh_callback(int, void* )
{
    Mat canny_output;
Canny( src_gray, canny_output, thresh, thresh*2 );

vector<vector<Point> > contours;
findContours( canny_output, contours, RETR_TREE, CHAIN_APPROX_SIMPLE );

vector<vector<Point> > contours_poly( contours.size() );
vector<Rect> boundRect( contours.size() );
vector<Point2f>centers( contours.size() );
vector<float>radius( contours.size() );

    for( size_t i = 0; i < contours.size(); i++ )
    {
approxPolyDP( contours[i], contours_poly[i], 3, true );
boundRect[i] = boundingRect( contours_poly[i] );
minEnclosingCircle( contours_poly[i], centers[i], radius[i] );
    }

    Mat drawing = Mat::zeros( canny_output.size(), CV_8UC3 );

    for( size_t i = 0; i< contours.size(); i++ )
    {
        Scalar color = Scalar( rng.uniform(0, 256), rng.uniform(0,256), rng.uniform(0,256) );
drawContours( drawing, contours_poly, (int)i, color );
rectangle( drawing, boundRect[i].tl(), boundRect[i].br(), color, 2 );
circle( drawing, centers[i], (int)radius[i], color, 2 );
    }

    imshow( "Contours", drawing );
}

Java

本教程程式碼如下所示。您也可以從此處下載

import java.awt.BorderLayout;
import java.awt.Container;
import java.awt.Image;
import java.util.ArrayList;
import java.util.List;
import java.util.Random;

import javax.swing.BoxLayout;
import javax.swing.ImageIcon;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.JSlider;
import javax.swing.event.ChangeEvent;
import javax.swing.event.ChangeListener;

import org.opencv.core.Core;
import org.opencv.core.CvType;
import org.opencv.core.Mat;
import org.opencv.core.MatOfPoint;
import org.opencv.core.MatOfPoint2f;
import org.opencv.core.Point;
import org.opencv.core.Rect;
import org.opencv.core.Scalar;
import org.opencv.core.Size;
import org.opencv.highgui.HighGui;
import org.opencv.imgcodecs.Imgcodecs;
import org.opencv.imgproc.Imgproc;

class GeneralContours1 {
    private Mat srcGray = new Mat();
    private JFrame frame;
    private JLabel imgSrcLabel;
    private JLabel imgContoursLabel;
    private static final int MAX_THRESHOLD = 255;
    private int threshold = 100;
    private Random rng = new Random(12345);

    public GeneralContours1(String[] args) {
String filename = args.length > 0 ? args[0] : "../data/stuff.jpg";
Mat src = Imgcodecs.imread(filename);
        if (src.empty()) {
System.err.println("Cannot read image: " + filename);
System.exit(0);
        }

Imgproc.cvtColor(src, srcGray, Imgproc.COLOR_BGR2GRAY);
Imgproc.blur(srcGray, srcGray, new Size(3, 3));

        // Create and set up the window.
frame = new JFrame("Creating Bounding boxes and circles for contours demo");
frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        // Set up the content pane.
Image img = HighGui.toBufferedImage(src);
addComponentsToPane(frame.getContentPane(), img);
        // Use the content pane's default BorderLayout. No need for
        // setLayout(new BorderLayout());
        // Display the window.
frame.pack();
frame.setVisible(true);
update();
    }

    private void addComponentsToPane(Container pane, Image img) {
        if (!(pane.getLayout() instanceof BorderLayout)) {
pane.add(new JLabel("Container doesn't use BorderLayout!"));
            return;
        }

JPanel sliderPanel = new JPanel();
sliderPanel.setLayout(new BoxLayout(sliderPanel, BoxLayout.PAGE_AXIS));

sliderPanel.add(new JLabel("Canny threshold: "));
JSlider slider = new JSlider(0, MAX_THRESHOLD, threshold);
slider.setMajorTickSpacing(20);
slider.setMinorTickSpacing(10);
slider.setPaintTicks(true);
slider.setPaintLabels(true);
slider.addChangeListener(new ChangeListener() {
@Override
            public void stateChanged(ChangeEvent e) {
JSlider source = (JSlider) e.getSource();
threshold = source.getValue();
update();
            }
        });
sliderPanel.add(slider);
pane.add(sliderPanel, BorderLayout.PAGE_START);

JPanel imgPanel = new JPanel();
imgSrcLabel = new JLabel(new ImageIcon(img));
imgPanel.add(imgSrcLabel);

Mat blackImg = Mat.zeros(srcGray.size(), CvType.CV_8U);
imgContoursLabel = new JLabel(new ImageIcon(HighGui.toBufferedImage(blackImg)));
imgPanel.add(imgContoursLabel);

pane.add(imgPanel, BorderLayout.CENTER);
    }

    private void update() {
Mat cannyOutput = new Mat();
Imgproc.Canny(srcGray, cannyOutput, threshold, threshold * 2);

List<MatOfPoint> contours = new ArrayList<>();
Mat hierarchy = new Mat();
Imgproc.findContours(cannyOutput, contours, hierarchy, Imgproc.RETR_TREE, Imgproc.CHAIN_APPROX_SIMPLE);

MatOfPoint2f[] contoursPoly = new MatOfPoint2f[contours.size()];
        Rect[] boundRect = new Rect[contours.size()];
        Point[] centers = new Point[contours.size()];
        float[][] radius = new float[contours.size()][1];

        for (int i = 0; i < contours.size(); i++) {
contoursPoly[i] = new MatOfPoint2f();
Imgproc.approxPolyDP(new MatOfPoint2f(contours.get(i).toArray()), contoursPoly[i], 3, true);
boundRect[i] = Imgproc.boundingRect(new MatOfPoint(contoursPoly[i].toArray()));
centers[i] = new Point();
Imgproc.minEnclosingCircle(contoursPoly[i], centers[i], radius[i]);
        }

Mat drawing = Mat.zeros(cannyOutput.size(), CvType.CV_8UC3);
List<MatOfPoint> contoursPolyList = new ArrayList<>(contoursPoly.length);
        for (MatOfPoint2f poly : contoursPoly) {
contoursPolyList.add(new MatOfPoint(poly.toArray()));
        }

        for (int i = 0; i < contours.size(); i++) {
            Scalar color = new Scalar(rng.nextInt(256), rng.nextInt(256), rng.nextInt(256));
Imgproc.drawContours(drawing, contoursPolyList, i, color);
Imgproc.rectangle(drawing, boundRect[i].tl(), boundRect[i].br(), color, 2);
Imgproc.circle(drawing, centers[i], (int) radius[i][0], color, 2);
        }

imgContoursLabel.setIcon(new ImageIcon(HighGui.toBufferedImage(drawing)));
frame.repaint();
    }
}

public class GeneralContoursDemo1 {
    public static void main(String[] args) {
        // 載入本地 OpenCV 庫
System.loadLibrary(Core.NATIVE_LIBRARY_NAME);

        // Schedule a job for the event dispatch thread
        // creating and showing this application's GUI.
javax.swing.SwingUtilities.invokeLater(new Runnable() {
@Override
            public void run() {
                new GeneralContours1(args);
            }
        });
    }
}

Python

本教程程式碼如下所示。您也可以從此處下載

from __future__ import print_function
import cv2 as cv
import numpy as np
import argparse
import random as rng

rng.seed(12345)

def thresh_callback(val)
threshold = val


canny_output = cv.Canny(src_gray, threshold, threshold * 2)



contours, _ = cv.findContours(canny_output, cv.RETR_TREE, cv.CHAIN_APPROX_SIMPLE)



contours_poly = [None]*len(contours)
boundRect = [None]*len(contours)
centers = [None]*len(contours)
radius = [None]*len(contours)
    for i, c in enumerate(contours)
contours_poly[i] = cv.approxPolyDP(c, 3, True)
boundRect[i] = cv.boundingRect(contours_poly[i])
centers[i], radius[i] = cv.minEnclosingCircle(contours_poly[i])



drawing = np.zeros((canny_output.shape[0], canny_output.shape[1], 3), dtype=np.uint8)



    for i in range(len(contours))
color = (rng.randint(0,256), rng.randint(0,256), rng.randint(0,256))
        cv.drawContours(drawing, contours_poly, i, color)
        cv.rectangle(drawing, (int(boundRect[i][0]), int(boundRect[i][1])), \
(int(boundRect[i][0]+boundRect[i][2]), int(boundRect[i][1]+boundRect[i][3])), color, 2)
        cv.circle(drawing, (int(centers[i][0]), int(centers[i][1])), int(radius[i]), color, 2)



    cv.imshow('Contours', drawing)



parser = argparse.ArgumentParser(description='Code for Creating Bounding boxes and circles for contours tutorial.')
parser.add_argument('--input', help='Path to input image.', default='stuff.jpg')
args = parser.parse_args()

src = cv.imread(cv.samples.findFile(args.input))
if src is None
print('Could not open or find the image:', args.input)
exit(0)

# Convert image to gray and blur it
src_gray = cv.cvtColor(src, cv.COLOR_BGR2GRAY)
src_gray = cv.blur(src_gray, (3,3))



source_window = 'Source'
cv.namedWindow(source_window)
cv.imshow(source_window, src)

max_thresh = 255
thresh = 100 # initial threshold
cv.createTrackbar('Canny thresh:', source_window, thresh, max_thresh, thresh_callback)
thresh_callback(thresh)


cv.waitKey()

解釋

主函式相當簡單，正如註釋中所示，我們執行以下操作：

• 開啟影像，將其轉換為灰度並進行模糊處理以去除噪聲。

C++

    CommandLineParser parser( argc, argv, "{@input | stuff.jpg | input image}" );
    Mat src = imread( samples::findFile( parser.get<String>( "@input" ) ) );
    if( src.empty() )
    {
cout << "Could not open or find the image!\n" << endl;
cout << "usage: " << argv[0] << " <Input image>" << endl;
        return -1;
    }

    cvtColor( src, src_gray, COLOR_BGR2GRAY );
    blur( src_gray, src_gray, Size(3,3) );

Java

        String filename = args.length > 0 ? args[0] : "../data/stuff.jpg";
Mat src = Imgcodecs.imread(filename);
        if (src.empty()) {
System.err.println("Cannot read image: " + filename);
System.exit(0);
        }

Imgproc.cvtColor(src, srcGray, Imgproc.COLOR_BGR2GRAY);
Imgproc.blur(srcGray, srcGray, new Size(3, 3));

Python

parser = argparse.ArgumentParser(description='Code for Creating Bounding boxes and circles for contours tutorial.')
parser.add_argument('--input', help='Path to input image.', default='stuff.jpg')
args = parser.parse_args()

src = cv.imread(cv.samples.findFile(args.input))
if src is None
print('Could not open or find the image:', args.input)
exit(0)

# Convert image to gray and blur it
src_gray = cv.cvtColor(src, cv.COLOR_BGR2GRAY)
src_gray = cv.blur(src_gray, (3,3))

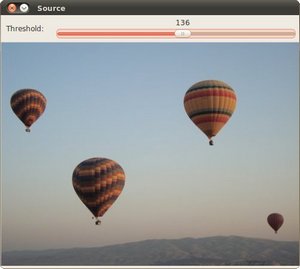

• 建立一個標題為“Source”的視窗並在其中顯示原始檔。

C++

    const char* source_window = "Source";
    namedWindow( source_window );
    imshow( source_window, src );

Java

        // Create and set up the window.
frame = new JFrame("Creating Bounding boxes and circles for contours demo");
frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        // Set up the content pane.
Image img = HighGui.toBufferedImage(src);
addComponentsToPane(frame.getContentPane(), img);

Python

source_window = 'Source'
cv.namedWindow(source_window)
cv.imshow(source_window, src)

• 在source_window上建立一個跟蹤條，併為其分配一個回撥函式。通常，回撥函式用於響應某種訊號，在本例中是跟蹤條狀態的變化。有必要顯式一次性呼叫thresh_callback，以便“Contours”視窗與“Source”視窗同時顯示。

C++

    const int max_thresh = 255;
    createTrackbar( "Canny thresh:", source_window, &thresh, max_thresh, thresh_callback );
thresh_callback( 0, 0 );

Java

sliderPanel.add(new JLabel("Canny threshold: "));
JSlider slider = new JSlider(0, MAX_THRESHOLD, threshold);
slider.setMajorTickSpacing(20);
slider.setMinorTickSpacing(10);
slider.setPaintTicks(true);
slider.setPaintLabels(true);
slider.addChangeListener(new ChangeListener() {
@Override
            public void stateChanged(ChangeEvent e) {
JSlider source = (JSlider) e.getSource();
                threshold = source.getValue();
update();
            }
        });

Python

max_thresh = 255
thresh = 100 # initial threshold
cv.createTrackbar('Canny thresh:', source_window, thresh, max_thresh, thresh_callback)
thresh_callback(thresh)

回撥函式完成所有有趣的工作。

• 使用cv::Canny檢測影像中的邊緣。

C++

    Mat canny_output;
    Canny( src_gray, canny_output, thresh, thresh*2 );

Java

Mat cannyOutput = new Mat();
Imgproc.Canny(srcGray, cannyOutput, threshold, threshold * 2);

Python

canny_output = cv.Canny(src_gray, threshold, threshold * 2)

• 查詢輪廓並將其儲存到向量contour和hierarchy中。

C++

vector<vector<Point> > contours;
    findContours( canny_output, contours, RETR_TREE, CHAIN_APPROX_SIMPLE );

Java

List<MatOfPoint> contours = new ArrayList<>();
Mat hierarchy = new Mat();
Imgproc.findContours(cannyOutput, contours, hierarchy, Imgproc.RETR_TREE, Imgproc.CHAIN_APPROX_SIMPLE);

Python

contours, _ = cv.findContours(canny_output, cv.RETR_TREE, cv.CHAIN_APPROX_SIMPLE)

• 對於每個找到的輪廓，我們現在以±3的精度應用多邊形近似，並宣告曲線必須是閉合的。之後，我們為每個多邊形找到一個邊界矩形並將其儲存到boundRect。最後，我們為每個多邊形找到一個最小外接圓並將其儲存到center和radius向量中。

C++

vector<vector<Point> > contours_poly( contours.size() );
vector<Rect> boundRect( contours.size() );
vector<Point2f>centers( contours.size() );
vector<float>radius( contours.size() );

    for( size_t i = 0; i < contours.size(); i++ )
    {
        approxPolyDP( contours[i], contours_poly[i], 3, true );
boundRect[i] = boundingRect( contours_poly[i] );
        minEnclosingCircle( contours_poly[i], centers[i], radius[i] );
    }

Java

MatOfPoint2f[] contoursPoly = new MatOfPoint2f[contours.size()];
        Rect[] boundRect = new Rect[contours.size()];
        Point[] centers = new Point[contours.size()];
        float[][] radius = new float[contours.size()][1];

        for (int i = 0; i < contours.size(); i++) {
contoursPoly[i] = new MatOfPoint2f();
Imgproc.approxPolyDP(new MatOfPoint2f(contours.get(i).toArray()), contoursPoly[i], 3, true);
boundRect[i] = Imgproc.boundingRect(new MatOfPoint(contoursPoly[i].toArray()));
centers[i] = new Point();
Imgproc.minEnclosingCircle(contoursPoly[i], centers[i], radius[i]);
        }

Python

contours_poly = [None]*len(contours)
boundRect = [None]*len(contours)
centers = [None]*len(contours)
radius = [None]*len(contours)
    for i, c in enumerate(contours)
contours_poly[i] = cv.approxPolyDP(c, 3, True)
boundRect[i] = cv.boundingRect(contours_poly[i])
centers[i], radius[i] = cv.minEnclosingCircle(contours_poly[i])

我們找到了所有需要的東西，現在只需要繪製。

• 建立新的Mat，由無符號8位字元填充零。它將包含我們所有的繪圖（矩形和圓）。

C++

    Mat drawing = Mat::zeros( canny_output.size(), CV_8UC3 );

Java

Mat drawing = Mat.zeros(cannyOutput.size(), CvType.CV_8UC3);

Python

drawing = np.zeros((canny_output.shape[0], canny_output.shape[1], 3), dtype=np.uint8)

• 對於每個輪廓：選擇一個隨機顏色，繪製輪廓、邊界矩形和最小外接圓。

C++

    for( size_t i = 0; i< contours.size(); i++ )
    {
        Scalar color = Scalar( rng.uniform(0, 256), rng.uniform(0,256), rng.uniform(0,256) );
        drawContours( drawing, contours_poly, (int)i, color );
        rectangle( drawing, boundRect[i].tl(), boundRect[i].br(), color, 2 );
        circle( drawing, centers[i], (int)radius[i], color, 2 );
    }

Java

List<MatOfPoint> contoursPolyList = new ArrayList<>(contoursPoly.length);
        for (MatOfPoint2f poly : contoursPoly) {
contoursPolyList.add(new MatOfPoint(poly.toArray()));
        }

        for (int i = 0; i < contours.size(); i++) {
            Scalar color = new Scalar(rng.nextInt(256), rng.nextInt(256), rng.nextInt(256));
Imgproc.drawContours(drawing, contoursPolyList, i, color);
Imgproc.rectangle(drawing, boundRect[i].tl(), boundRect[i].br(), color, 2);
Imgproc.circle(drawing, centers[i], (int) radius[i][0], color, 2);
        }

Python

    for i in range(len(contours))
color = (rng.randint(0,256), rng.randint(0,256), rng.randint(0,256))
        cv.drawContours(drawing, contours_poly, i, color)
        cv.rectangle(drawing, (int(boundRect[i][0]), int(boundRect[i][1])), \
(int(boundRect[i][0]+boundRect[i][2]), int(boundRect[i][1]+boundRect[i][3])), color, 2)
        cv.circle(drawing, (int(centers[i][0]), int(centers[i][1])), int(radius[i]), color, 2)

• 顯示結果：建立一個新視窗“Contours”並顯示我們新增到繪圖中的所有內容。

C++

    imshow( "Contours", drawing );

Java

imgContoursLabel.setIcon(new ImageIcon(HighGui.toBufferedImage(drawing)));
frame.repaint();

Python

    cv.imshow('Contours', drawing)

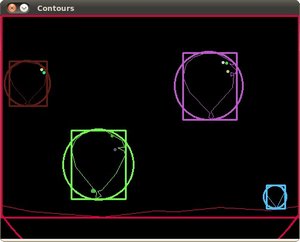

結果

就是這樣：
