samples/cpp/facedetect.cpp

本程式演示了Cascade分類器類的用法

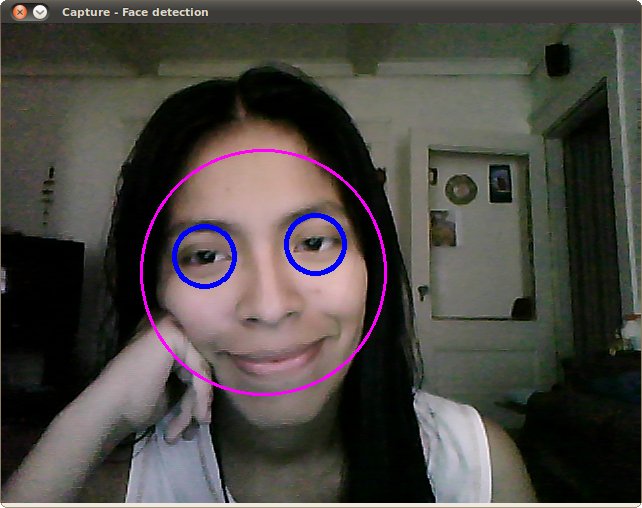

示例截圖

#include "opencv2/objdetect.hpp"
#include "opencv2/highgui.hpp"
#include "opencv2/imgproc.hpp"
#include "opencv2/videoio.hpp"
#include <iostream>

using namespace std;
using namespace cv;

static void help(const char** argv)
{
cout << "\n本程式演示了cv::CascadeClassifier類的用法，用於檢測物件（人臉+眼睛）。您可以使用Haar或LBP特徵。\n"
            "此分類器在經過適當訓練後，可以識別多種剛性物件。\n"
            "其最常見的用途是人臉識別。\n"
            "用法:\n"
<< argv[0]
<< " [--cascade=<cascade_path> 這是主要的訓練分類器，例如正面人臉檢測器]\n"
            " [--nested-cascade[=nested_cascade_path 這是一個可選的次級分類器，例如眼睛檢測器]]\n"
            " [--scale=<影像縮放比例，大於或等於1，例如嘗試1.3>]\n"
            " [--try-flip]\n"
            " [檔名|攝像頭索引]\n\n"
            "示例：\n"
<< argv[0]
<< " --cascade=\"data/haarcascades/haarcascade_frontalface_alt.xml\" --nested-cascade=\"data/haarcascades/haarcascade_eye_tree_eyeglasses.xml\" --scale=1.3\n\n"
            "執行期間：\n\t按任意鍵退出。\n"
            "\t使用OpenCV版本 " << CV_VERSION << "\n" << endl;
}

void detectAndDraw( Mat& img, CascadeClassifier& cascade,
                    CascadeClassifier& nestedCascade,
                    double scale, bool tryflip );

string cascadeName;
string nestedCascadeName;

int main( int argc, const char** argv )
{
    VideoCapture capture;
    Mat frame, image;
    string inputName;
    bool tryflip;
    CascadeClassifier cascade, nestedCascade;
    double scale;

    cv::CommandLineParser parser(argc, argv,
        "{help h||}"
        "{cascade|data/haarcascades/haarcascade_frontalface_alt.xml|}"
        "{nested-cascade|data/haarcascades/haarcascade_eye_tree_eyeglasses.xml|}"
        "{scale|1|}{try-flip||}{@filename||}"
    );
    if (parser.has("help"))
    {
help(argv);
        return 0;
    }
cascadeName = parser.get<string>("cascade");
nestedCascadeName = parser.get<string>("nested-cascade");
    scale = parser.get<double>("scale");
    if (scale < 1)
        scale = 1;
tryflip = parser.has("try-flip");
inputName = parser.get<string>("@filename");
    if (!parser.check())
    {
parser.printErrors();
        return 0;
    }
    if (!nestedCascade.load(samples::findFileOrKeep(nestedCascadeName)))
cerr << "警告：無法載入巢狀物件的分類器級聯檔案" << endl;
    if (!cascade.load(samples::findFile(cascadeName)))
    {
cerr << "錯誤：無法載入分類器級聯檔案" << endl;
help(argv);
        return -1;
    }
    if( inputName.empty() || (isdigit(inputName[0]) && inputName.size() == 1) )
    {
        int camera = inputName.empty() ? 0 : inputName[0] - '0';
        if(!capture.open(camera))
        {
cout << "無法從攝像頭 #" << camera << " 捕獲" << endl;
            return 1;
        }
    }
    else if (!inputName.empty())
    {
image = imread(samples::findFileOrKeep(inputName), IMREAD_COLOR);
        if (image.empty())
        {
            if (!capture.open(samples::findFileOrKeep(inputName)))
            {
cout << "無法讀取 " << inputName << endl;
                return 1;
            }
        }
    }
    else
    {
image = imread(samples::findFile("lena.jpg"), IMREAD_COLOR);
        if (image.empty())
        {
cout << "無法讀取lena.jpg" << endl;
            return 1;
        }
    }

    if( capture.isOpened() )
    {
cout << "影片捕獲已開始..." << endl;

        for(;;)
        {
capture >> frame;
            if( frame.empty() )
                break;

            Mat frame1 = frame.clone();
detectAndDraw( frame1, cascade, nestedCascade, scale, tryflip );

            char c = (char)waitKey(10);
            if( c == 27 || c == 'q' || c == 'Q' )
                break;
        }
    }
    else
    {
cout << "正在檢測 " << inputName << " 中的人臉" << endl;
        if( !image.empty() )
        {
detectAndDraw( image, cascade, nestedCascade, scale, tryflip );
            waitKey(0);
        }
        else if( !inputName.empty() )
        {
            /* 假設它是一個包含影像檔名的文字檔案，
每行一個待處理的影像檔名 */
FILE* f = fopen( inputName.c_str(), "rt" );
            if( f )
            {
                char buf[1000+1];
                while( fgets( buf, 1000, f ) )
                {
                    int len = (int)strlen(buf);
                    while( len > 0 && isspace(buf[len-1]) )
len--;
buf[len] = '\0';
cout << "file " << buf << endl;
image = imread( buf, IMREAD_COLOR );
                    if( !image.empty() )
                    {
detectAndDraw( image, cascade, nestedCascade, scale, tryflip );
                        char c = (char)waitKey(0);
                        if( c == 27 || c == 'q' || c == 'Q' )
                            break;
                    }
                    else
                    {
cerr << "糟糕，無法讀取影像 " << buf << endl;
                    }
                }
fclose(f);
            }
        }
    }

    return 0;
}

void detectAndDraw( Mat& img, CascadeClassifier& cascade,
                    CascadeClassifier& nestedCascade,
                    double scale, bool tryflip )
{
    double t = 0;
vector<Rect> faces, faces2;
    const static Scalar colors[] =
    {
        Scalar(255,0,0),
        Scalar(255,128,0),
        Scalar(255,255,0),
        Scalar(0,255,0),
        Scalar(0,128,255),
        Scalar(0,255,255),
        Scalar(0,0,255),
        Scalar(255,0,255)
    };
    Mat gray, smallImg;

    cvtColor( img, gray, COLOR_BGR2GRAY );
    double fx = 1 / scale;
    resize( gray, smallImg, Size(), fx, fx, INTER_LINEAR_EXACT );
    equalizeHist( smallImg, smallImg );

t = (double)getTickCount();
cascade.detectMultiScale( smallImg, faces,
        1.1, 2, 0
        //|CASCADE_FIND_BIGGEST_OBJECT
        //|CASCADE_DO_ROUGH_SEARCH
|CASCADE_SCALE_IMAGE,
        Size(30, 30) );
    if( tryflip )
    {
        flip(smallImg, smallImg, 1);
cascade.detectMultiScale( smallImg, faces2,
                                 1.1, 2, 0
                                 //|CASCADE_FIND_BIGGEST_OBJECT
                                 //|CASCADE_DO_ROUGH_SEARCH
|CASCADE_SCALE_IMAGE,
                                 Size(30, 30) );
        for( vector<Rect>::const_iterator r = faces2.begin(); r != faces2.end(); ++r )
        {
faces.push_back(Rect(smallImg.cols - r->x - r->width, r->y, r->width, r->height));
        }
    }
t = (double)getTickCount() - t;
printf( "檢測時間 = %g 毫秒\n", t*1000/getTickFrequency());
    for ( size_t i = 0; i < faces.size(); i++ )
    {
        Rect r = faces[i];
        Mat smallImgROI;
vector<Rect> nestedObjects;
        Point center;
        Scalar color = colors[i%8];
        int radius;

        double aspect_ratio = (double)r.width/r.height;
        if( 0.75 < aspect_ratio && aspect_ratio < 1.3 )
        {
center.x = cvRound((r.x + r.width*0.5)*scale);
center.y = cvRound((r.y + r.height*0.5)*scale);
radius = cvRound((r.width + r.height)*0.25*scale);
            circle( img, center, radius, color, 3, 8, 0 );
        }
        else
            rectangle( img, Point(cvRound(r.x*scale), cvRound(r.y*scale)),
                       Point(cvRound((r.x + r.width-1)*scale), cvRound((r.y + r.height-1)*scale)),
color, 3, 8, 0);
        if( nestedCascade.empty() )
            continue;
smallImgROI = smallImg( r );
nestedCascade.detectMultiScale( smallImgROI, nestedObjects,
            1.1, 2, 0
            //|CASCADE_FIND_BIGGEST_OBJECT
            //|CASCADE_DO_ROUGH_SEARCH
            //|CASCADE_DO_CANNY_PRUNING
|CASCADE_SCALE_IMAGE,
            Size(30, 30) );
        for ( size_t j = 0; j < nestedObjects.size(); j++ )
        {
            Rect nr = nestedObjects[j];
center.x = cvRound((r.x + nr.x + nr.width*0.5)*scale);
center.y = cvRound((r.y + nr.y + nr.height*0.5)*scale);
radius = cvRound((nr.width + nr.height)*0.25*scale);
            circle( img, center, radius, color, 3, 8, 0 );
        }
    }
    imshow( "result", img );
}
